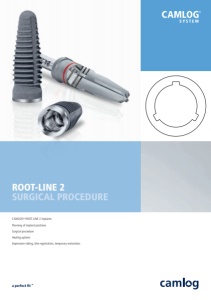

CAMLOG ROOT-LINE 2 Surgical Procedure

6 CAMLOG ® ROOT-LINE 2 IMPLANT CAMLOG ® ROOT-LINE 2 implants are part of the CAMLOG ® Implant System and assigned K article numbers. The CAMLOG ® Implant System consists of surgical, prosthetic, laboratory components and instruments. The CAMLOG ® ROOT-LINE 2 implants are used with CAMLOG ® compo- nents such as CAMLOG ® cover screws, CAMLOG ® healing caps, CAMLOG ® impression posts as well as CAMLOG ® prosthetic components, also for platform switching. Only CAMLOG ® components for the Tube-in-Tube™ inner configuration are compatible with CAMLOG ® ROOT-LINE 2 implants! OPTION PLATFORM SWITCHING To give CAMLOG users the option of platform switching, the grooves in the implant inner configuration of the CAMLOG ® ROOT-LINE 2 implants are de- signed angular and shortened. The angular groove design enables restora- tion with prosthetic components suitable for platform switching, which have a tapered diameter in the apical section and do not fully cover the im- plant shoulder support. CAMLOG ® healing caps PS, CAMLOG ® impression posts PS (open and closed tray) and CAMLOG ® abutments PS are compat- ible with CAMLOG ® ROOT-LINE 2 implants. CAMLOG ® abutment with K article number CAMLOG ® ROOT-LINE 2 implant with K article number CAMLOG ® Tube-in-Tube™ IMPLANT-ABUTMENT CONNECTION WITH SQUARE IMPLANT GROOVES AND ABUTMENT CAMS If CAMLOG ® healing caps PS are used for healing, then further pros- thetic restoration must be continued with CAMLOG ® prosthetic compo- nents PS for platform switching to avoid tissue damage! PS: Platform Switching MANUFACTURING PRECISION The inner and outer geometry of the CAMLOG ® implants and abutments are rotary machined for the most part. The tolerances can therefore be keep very low. The result is excellent part precision without impacting the mate- rial structure. The CAMLOG ® implant-abutment connection thus ensures a very precise, stable and rotation-resistant connection to the CAMLOG ® prosthetic components. MATERIALS All CAMLOG ® implants are manufactured from pure titanium grade 4,­ the CAMLOG ® abutments and abutment screws from titanium alloy Ti6Al4V ELI. CAMLOG ® ROOT-LINE 2 IMPLANTS
