THE CAMLOG
®
IMPLANT SYSTEM
SYSTEM INFORMATION
CAMLOG
®
IMPLANTATSYSTEM
CAMLOG
®
Vario SR abutments
CAMLOG
®
Vario SR abutments are available in straight, in
20° and 30° angled versions. These abutments can compen-
sate for large implant axis divergences. Prefabricated Vario SR
prosthetic components make fabrication of occlusally screw-
retained crown, bridge and bar restorations possible. Burn-
out plastic copings can be used to fabricate cast crown and
bridge restorations. The titanium caps have a retention sur-
face on the outside and are designed for temporary or final
bridge restorations made of plastic. Titanium bases for bar are
available for laser-welded bar restorations.
Surgical instruments
The surgical instruments are matched to the individual im-
plant lines and are color-coded to match the diameter of the
implant.
For a simple overview and handling, autoclavable surgery sets
are available for the respective implant lines with all required
instruments. The instruments are sorted and marked in the set
based on the sequence during implant bed preparation.
Healing with the various types of implants can in principle
be performed transgingival (single phase) or subgingival
(two-phase) according to indication. See also description of
indications in the respective instructions for use.

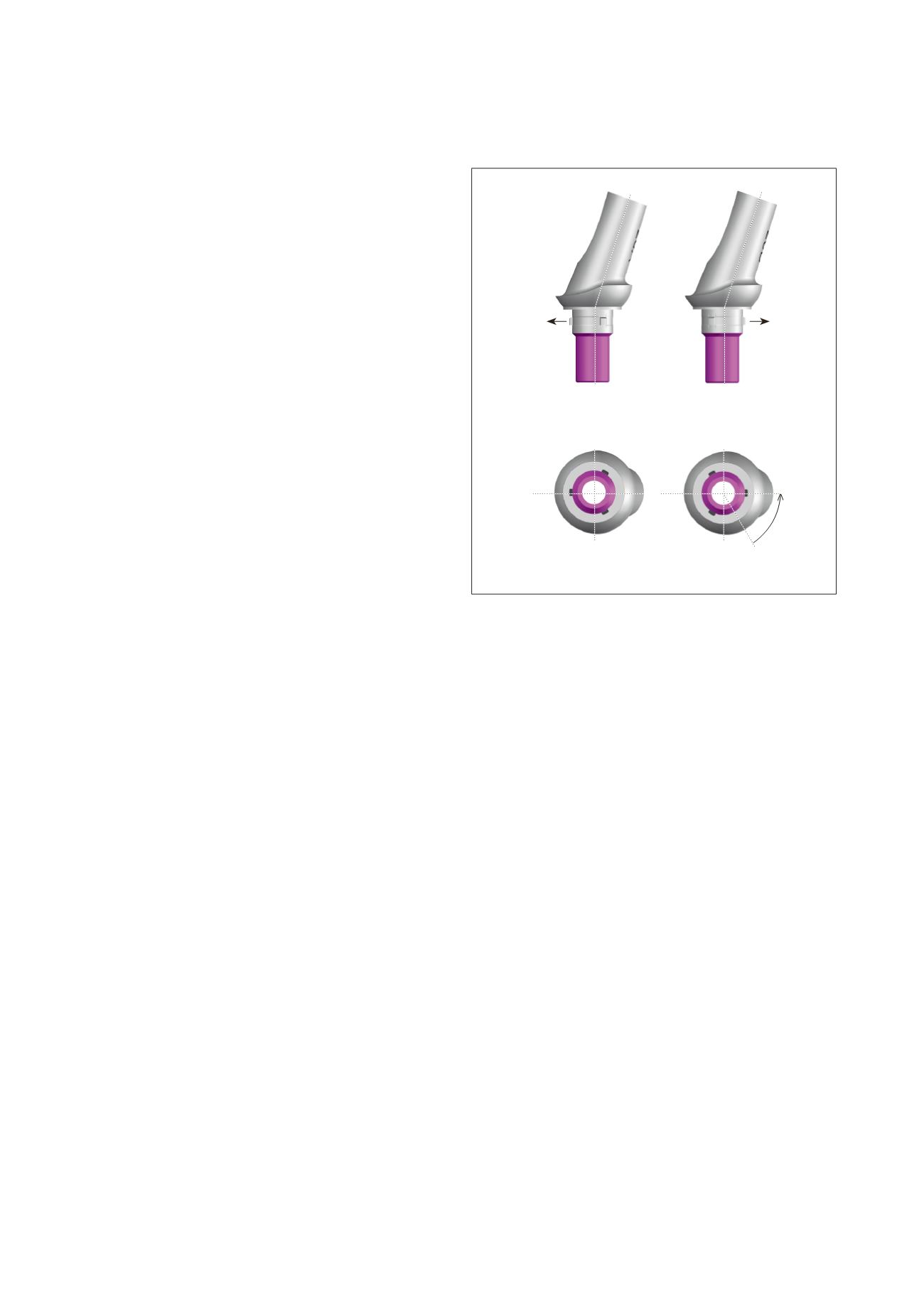

Type A
Cam alignment
against the angle
Type B
Cam alignment
in direction to the angle
Type A
Type B
Cam with 60° offset
60°
PROSTHETIC RESTORATIONS
CAMLOG
®
Implants can be provided with a pallet of wide-
ranging, anatomically appropriate prosthetic components.
Esthetic solutions are easily achievable. Nearly all CAMLOG
®
Abutments are color-coded corresponding to implant dia
meters.
CAMLOG
®
Abutments for crown and bridge
restorations
●
CAMLOG
®
Temporary abutment
●
CAMLOG
®
Temporary abutment PS for Platform Switching
●
CAMLOG
®
Esthomic
®
Abutments
●
CAMLOG
®
Esthomic
®
Abutments PS for Platform Switching
●
CAMLOG
®
Universal abutment
●
CAMLOG
®
Universal abutment PS for Platform Switching
●
CAMLOG
®
Gold-plastic abutment
●
CAMLOG
®
Titanium base CAD/CAM
●
CAMLOG
®
Ceramic abutment
●
CAMLOG
®
Logfit
®
Abutment
●
CAMLOG
®
Vario SR abutment
CAMLOG
®
Abutments for hybrid restorations
●
CAMLOG
®
Bar abutment
●
CAMLOG
®
Ball abutment
●
CAMLOG
®
Locator
®
Abutment
●
CAMLOG
®
Universal and telescope abutment
●
CAMLOG
®
Vario SR abutments
CAMLOG
®
Temporary abutment
The temporary abutments (PEEK material) can be used after
immediate implantation or after opening for temporary resto-
ration. Temporary abutments and temporary abutments PS for
Platform Switching are also available.
CAMLOG
®
Esthomic
®
Abutments
The abutments of the Esthomic
®
Line have an anatomical
shaped shoulder and are available in various gingival heights.
●
CAMLOG
®
Esthomic
®
Abutment, straight
●
CAMLOG
®
Esthomic
®
Abutment, 15° angled,
in type A and B
●
CAMLOG
®
Esthomic
®
Abutment, 20° angled,
in type A and B
●
CAMLOG
®
Esthomic
®
Abutment, inset
After fabricating the master model, the suitable CAMLOG
®
Esthomic
®
Abutments can be quickly and easily selected
using the color-coded CAMLOG
®
Esthomic
®
Selection abut-
ments in the dental laboratory. There is no longer any need
for expensive and complicated storage of abutments, either
by the dentist or at the prosthodontist or dental laboratory.
Angled CAMLOG
®
Esthomic
®
Abutments, type A and B
Angled abutments type A and B are available in the Esthomic
®
Line of abutments. Type A has a cam opposing the angle
direction. In contrast to type A, type B has a 60° offset cam.
Both types make six different rotation positions possible to
achieve an optimal prosthetic axis alignment.
